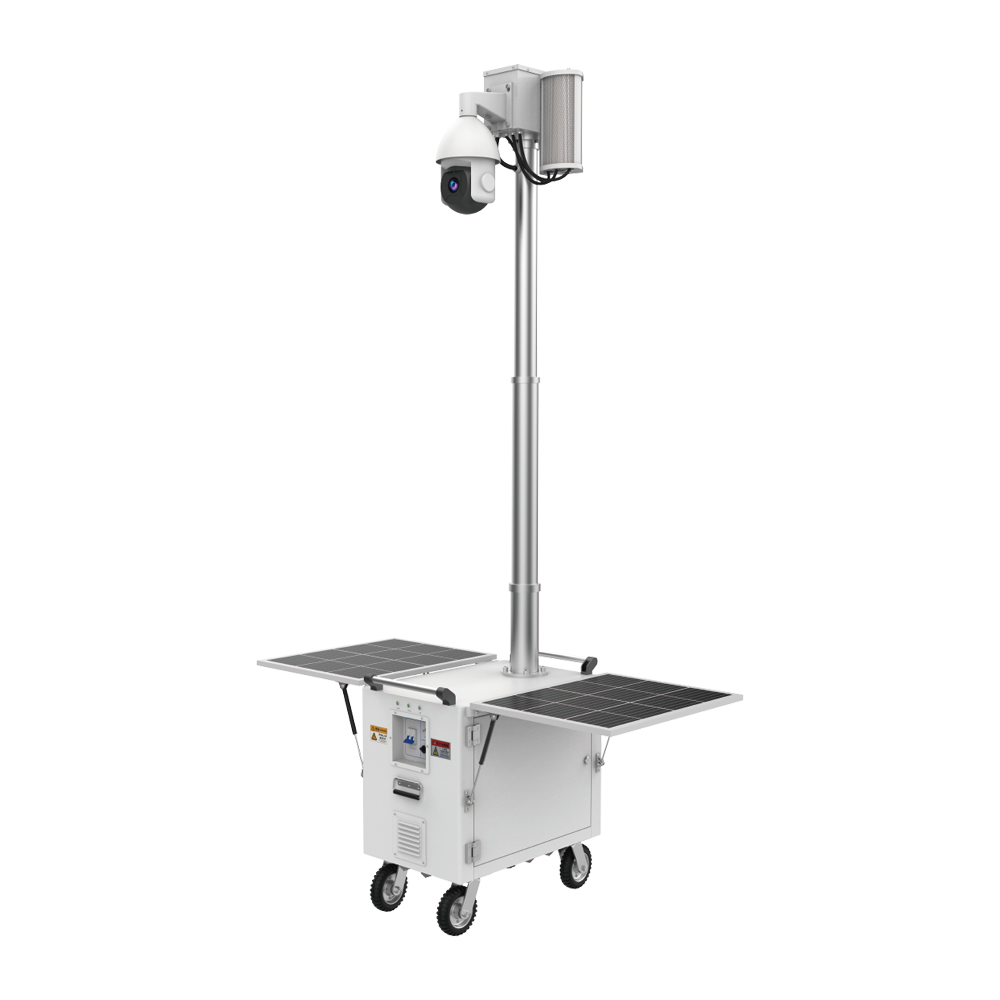

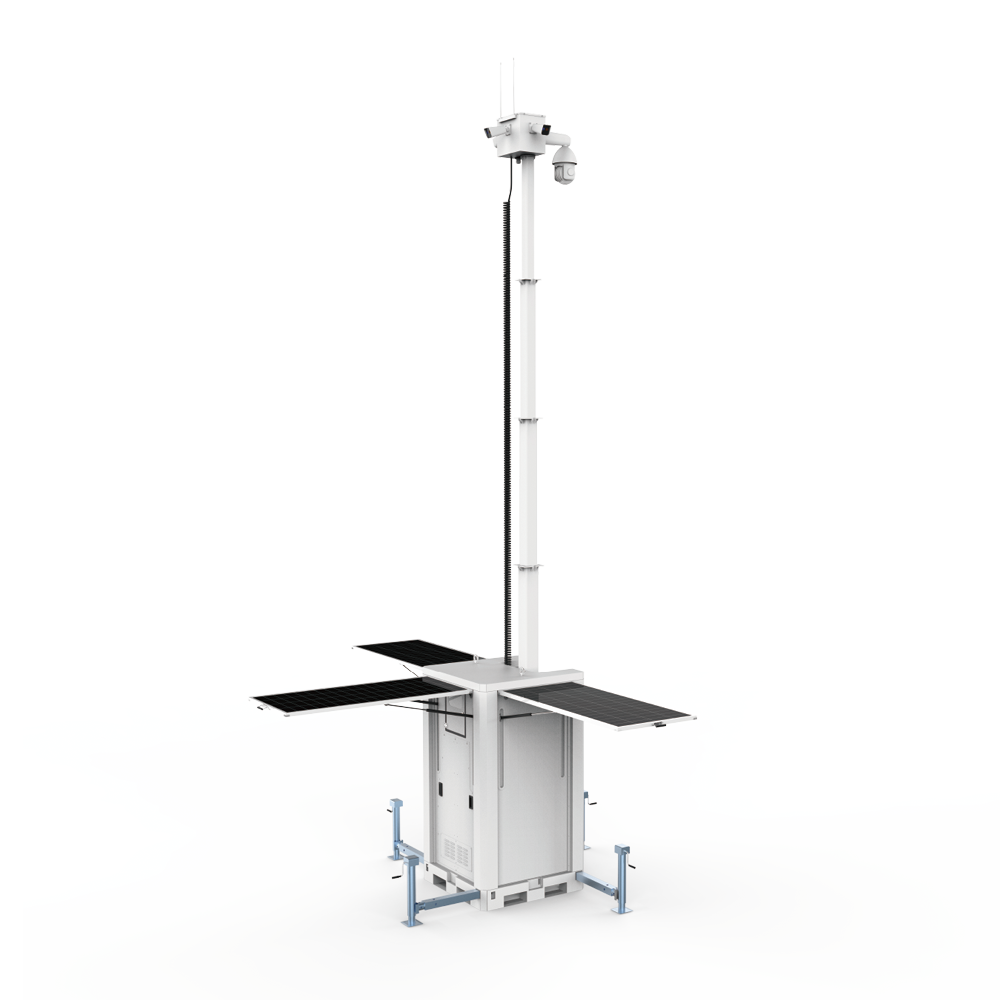

Mobile Solar Surveillance Trailers
Explore C600-7M
Monitoring Pixeles: 4MP / 8MP
Viewing Angle ：0°- 360° Horizontally
Monitoring Distance : 150-200M
Charging Time ： 6 hour
Working Time：
More than 90 hour for 80W monitoring system.
The camera brand can be customized according to
your requirements
Features
Solar energy
Emergency electricity
Intelligence
Multiple voltages
Technical Parameters
| C600-7M | Control Options | LCD panel (Remote Control + PC for your options) |
| PV Controller | MPPT 40A, 95% efficiency | |
| System Voltage | DC24V | |
| Working Temperature | -20℃ – 50℃ | |
| Charging Time | 6 hours | |
| Running Time | 90 hours | |
| IP rating | IP65 | |
| Monitoring System | Camera Qty | 1PCS 6-inch Dome Camera, 4MP, 25× IR |
| 3PCS Bullet Cameras，8 MP With AcuSense Technology | ||
| NVR | 8-ch, 8TB Surveillance HDD | |
| Router | 4G Mobile Router | |
| Solar Panel | Solar Panel Wattage | 3*460W |
| Solar Panel Type | Mono crystalline Silicon, 21.7% efficiency | |
| Battery and Inverter | Type | Lead-acid ( Lithium for your option) |
| Battery Pack | 4* 150AH DC12V 7200WH | |
| Inverter Output | AC 110V / 240V Sine Wave | |
| Output Connections | 1* 16A + AC sockets + 1* 5A , USB2.0 | |
| Inverter Power | 3KW | |
| Lifting System | Type | Electric / Manual for your options |
| Mast Height | 2.5 – 7M Retractable | |
| Wind Resistance Rating | Level 8 117KM/H | |
| Material | Hot-Dip Galvanized Steel | |
| Trailer | Axle | Single |
| Tire and Rim | 2*14 inch Pneumatic Tires | |
| Stabilizer | 4 Support legs, Manual | |
| Tower Hitch | Ball Type, with towing eye ∅70mm, suitable for 50mm trailer ball | |
| Drawbar | US / EU / AU standard | |
| Trailer Speed | 80 km/h | |
| Shipment | Transport Dimension | 2050*1883*2564 mm |
| Deployed Dimension | 3070*3627*7000 mm | |
| Total Weight | 1100kgs | |
| Loading Plan : | 40HQ: 6 pcs |
Application Scenario
Customization
01. Consultation
Discuss and finalize product specifications & requirements with the customer.
02. Design
Based on customer’s requirements, we will develop and finalize the the design with the approval by customer.
03. Quotation
Quote the prices and the estimated lead time for customer approval.
04. Sample Preparation & Approval
Sample fabrication and customer approval
05. Mass Production
According to customer approved product requirements and shipment date, we can start the quality-controlled mass production
06. Shipment
On-time shipment
